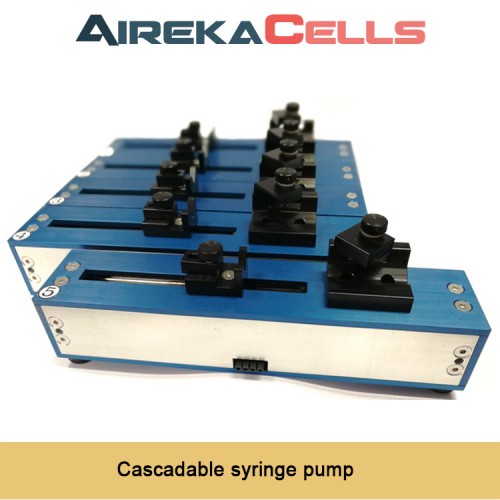

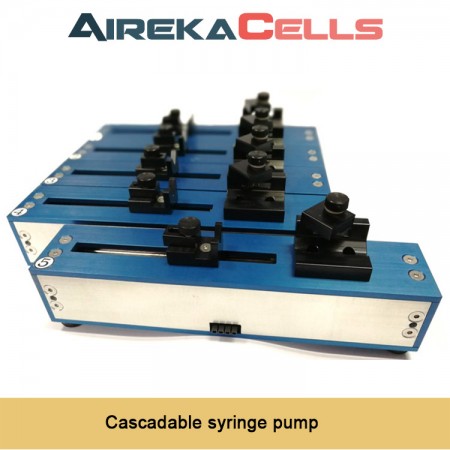

ASPM200C-Modular Precision Syringe Pump
Figure 1
Modular precision syringe pump perfect for liquid delivery operations. Features include:
- Scalable design with cascadable pump modules
- High precision flow control in micron-step resolution
- Wide flow rate range with bi-direction flow control
- Microscope stage adaptable
- Small and flexible footprint
AirekaCells Bi-direction Syringe Pump (PN: SPM200C) is a cascadable syringe pump module which provides a cost effective OEM solution for liquid pumping system integration and instrumentation.
It is a precision liquid delivery module which can supports syringe size up to 60ml with both infusion and withdrawal operations.
The SPM200C can be operated from one pump module standalone up to 8 cascaded pump modules with graphical user interface (GUI) computer software.

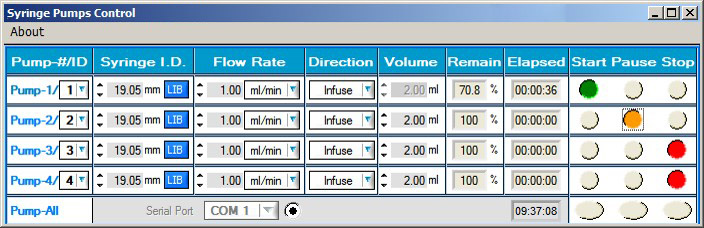

Software Interface
It features exhibits superior performance in fluidic flow control with an accuracy of ±0.5%, step resolution of 0.015 micron and maximum linear force of 100lbs.
The assemblies are shown in figure 1. The applications include:
- Liquid pumping system integration
- Precision liquid delivery with both infusion and withdrawal operations
- Standalone operation or upto 10 cascade modular operation with independent flow control
How to order your pump?
Step1: Choose the model of the syringe pumps
| Model | ASPM100 | ASPM200C |
|---|---|---|
| Flow Rate | 0.10 µl/hr ~ 6000 ml/hr | 2.0 nl/hr ~ 200 ml/hr |
| Syringe Size | 10 µl to 60 ml plastic/glass syringe | 9.1 mm (max.) |
| Max. Force (low speed) | 50 kg | 4.0 kg |
| Max Travel Length | 120 mm | 60 mm |
| Max Travel Speed | 150 mm/min | 108 mm/min |
| Min Travel Speed | 0.131 µm/min | 0.3516 µm/min |
| Micro step, 1/x | 120mm | 60mm |
| Step resolution | 0.015 µm | 0.00586 µm |
| Step Volume | 0.0026 µl (ID=15 mm or ~10 ml syringe) | |
| Interface to PC | USB to RS-485 adapter | USB to RS-485 adapter |
| No. of Syringe Pump | 1-4 (expandable up to 8) | expandable up to 10 |
| Power Source | DC12V/1.2A, per pump module | DC12V/1.2A, per pump module |
| Dimension (L x W x H) | 250 mm x 66 mm x 115 mm | 170 mm x 34 mm x (40+25) mm |
| Weight | 1.8 kg, per pump module | 0.15 kg, per pump module |

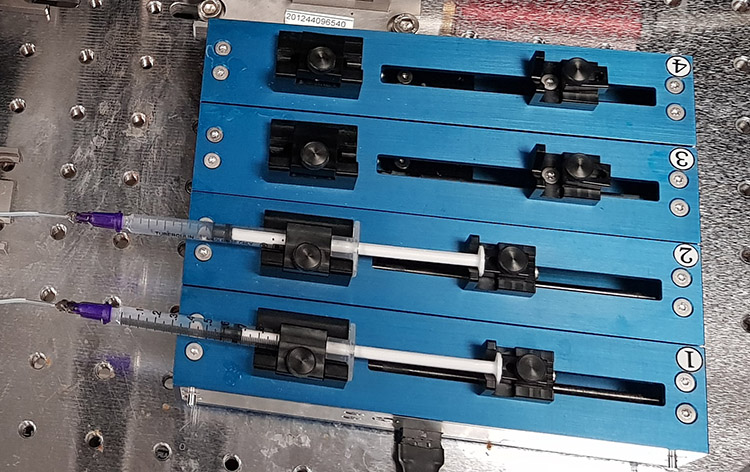

Step2: Define the number of pump modules and power sets
Step3: Contact us for enquiries and quotations
